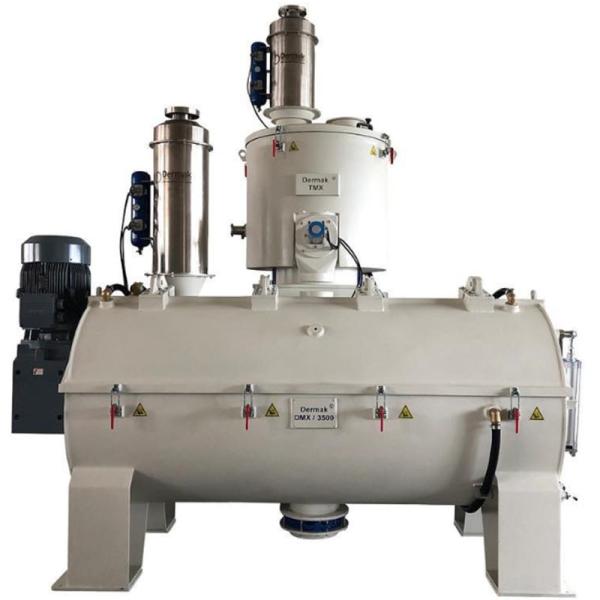

Composite Mixer – Wood Plastic With Vacuum Conveyor
Composite Mixer Wood–Plasti ideal for the production of Wood-Plastic Composites typically uses a fine wood waste (cellulose based fiber fillers such as hardwood,softwood, plywood, peanut hulls, bamboo, straw,etc.) mixed with Plastic. Existing vacuum system to extract
the moisture from wood fibers. The moisture content of approx. 16% can be reduced to <1% with vacuum system.
High throughtput rates with optimal mixing quality
Low operating costs
Compact design
USAGE AREAS OF MIXER
Decking, cladding, park benches, siding,architectural profiles, louvers, automotive components. There is also a growing market for potential indoor uses such as door frames, trim and furniture.
.
High Throughput and Superlative Mixing Quality
1.Process-optimized mixing tools for optimum energy input and gently mixing.
2.Vortex-enhancing design of blades and vessels, to ensure 100% homogenization.
3.Newly engineered cooler stirrers for increased cooling performance and better double-batching-performance.
4.Output range from 500 kg/h to 3500 kg/h
Technical data:
| Type | Total capaicty litres | Weight per batch kgs | Motor power KW |
| SHR200 | 200 | 90 | 45 |
| SHR250 | 250 | 110 | 55 |
| SHR300 | 300 | 140 | 75 |
| SHR400 | 400 | 180 | 90 |
| SHR500 | 500 | 220 | 110 |
| SHR600 | 600 | 260 | 132 |
| SHR700 | 700 | 310 | 160 |
| SHR800 | 800 | 360 | 200 |
| SHR1000 | 1000 | 450 | 250 |
| SHR1500 | 1500 | 675 | 355 |
| SHR2000 | 2000 | 900 | 560 |
ChiYu’s combined heating/cooling mixers are the optimum solution for complex mixing challenges. The systems are characterized by their outstanding product preparation in the heating phase and high-efficiency cooling performance. The horizontal and vertical heating/cooling mixers are designed for high-volume throughput, rapid processing and short cleaning times.
